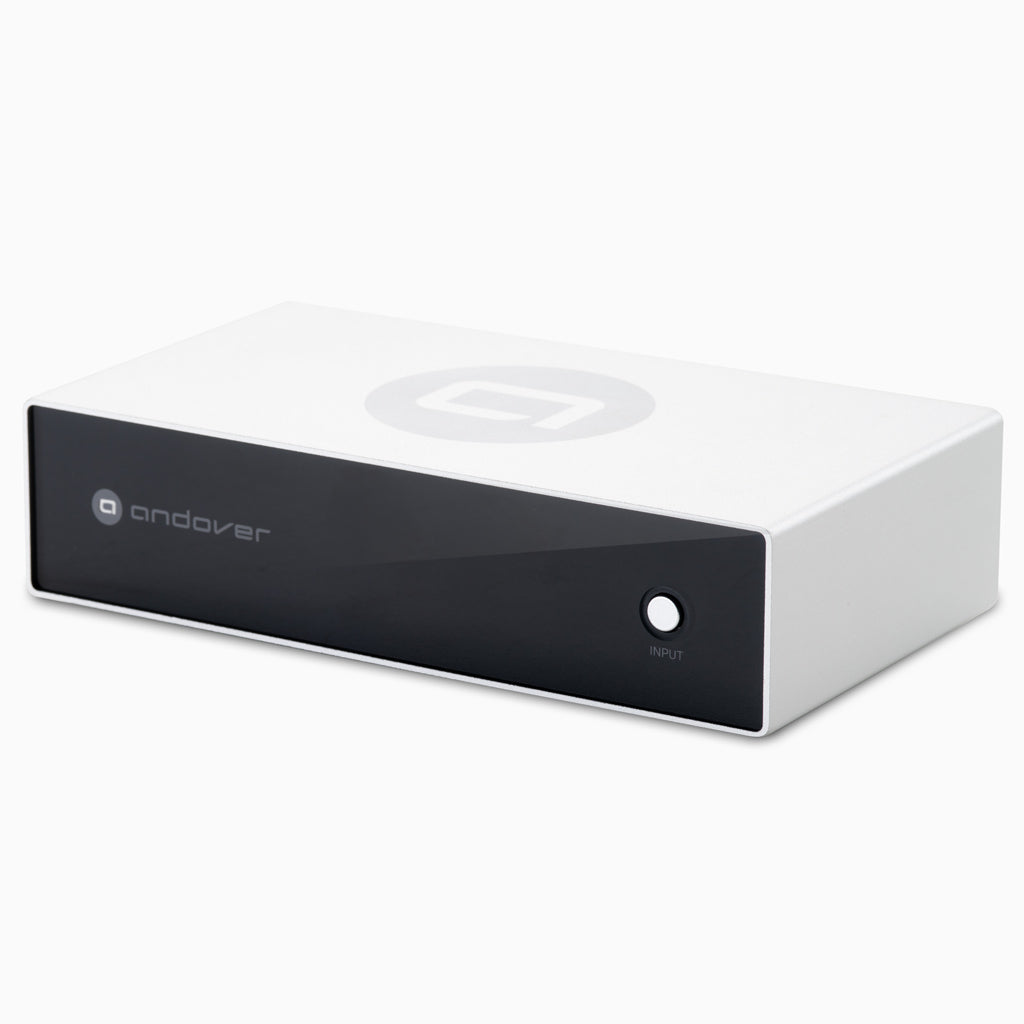

SpinStage Phono Pre-Amp
SpinStage Phono Pre-Amp
SpinStage Phono Pre-Amp
SpinStage Phono Pre-Amp
SpinStage Phono Pre-Amp
SpinStage Phono Pre-Amp
SpinStage Phono Pre-Amp
SpinStage Phono Pre-Amp
SpinStage Phono Pre-Amp
SpinStage Phono Pre-Amp

SpinStage Phono Pre-Amp

$229.00$249.00

Vinyl Playback with Exceptional Clarity

Editor's Choice - eCoustics

Don’t just connect a turntable—elevate it with the SpinStage phono preamp. Designed for both Moving Magnet and Moving Coil cartridges, it offers high-end circuitry and adjustable features that rival expensive preamps.

Finish
Aluminum

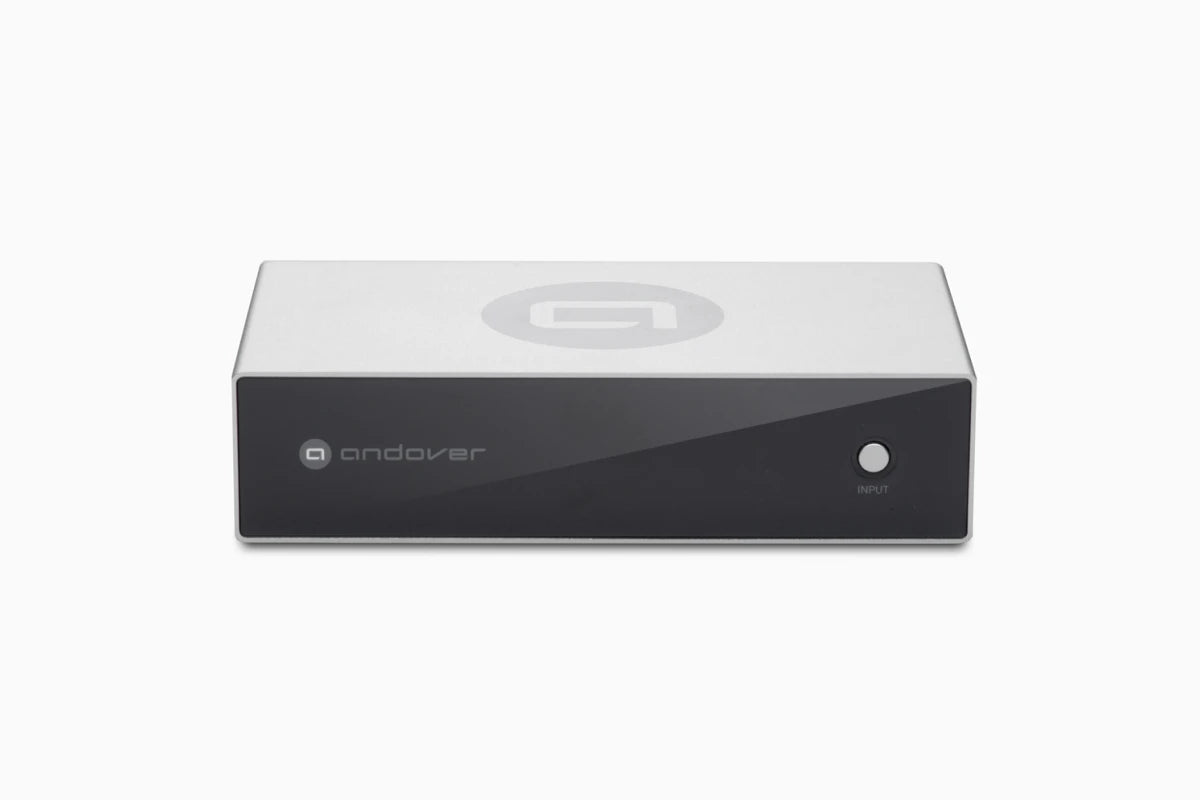

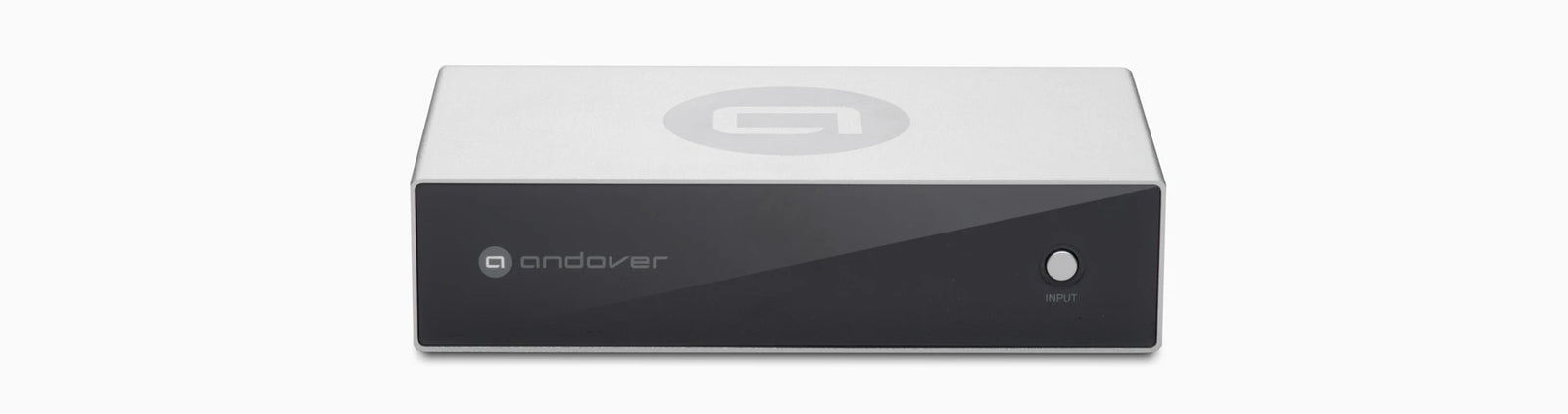

SpinStage - Moving Magnet & Moving Coil Phono Preamp

SpinStage has been painstakingly engineered to deliver outstanding sound quality with virtually any Magnetic or Moving-Coil cartridge. It is the perfect choice to add a phono input to an audio system that lacks one, to add Moving-Coil compatibility, or to simply improve upon your system’s internal circuit.

“one of the best affordable phono pre-amplifiers on the market”

eCoustics

"This thing is ridiculously good!"

Tracking Angle

“...impressed by the automatic impedance adjustment for moving coil cartridges.”

Future Audiophile

“one of the best affordable phono pre-amplifiers on the market”

eCoustics

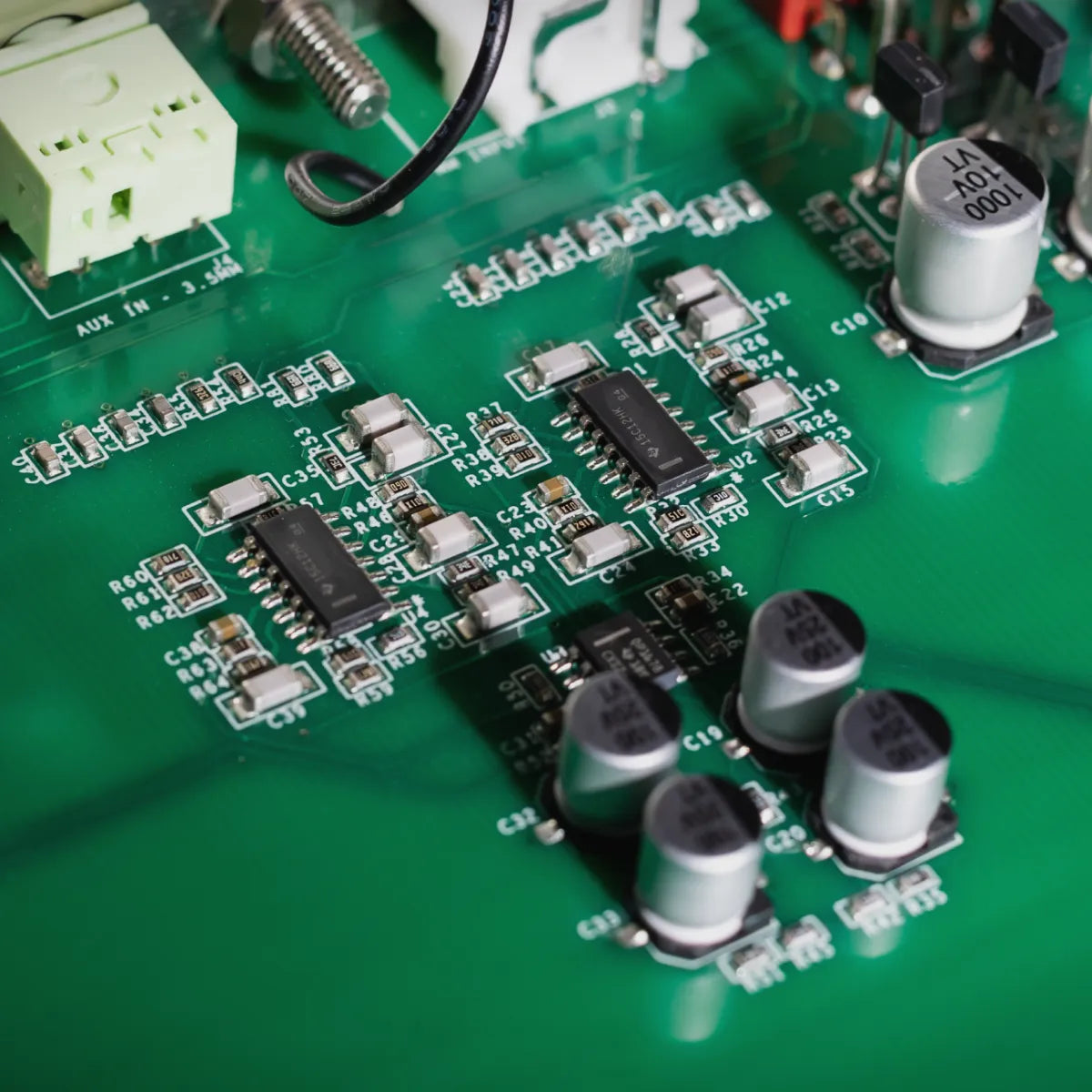

Exactly the Right Impedance
Most audio systems don’t accommodate low-output Moving Coil (MC) cartridges. The SpinStage preamp offers four MM input impedance settings and 15 MM capacitance options, ensuring your MM cartridge performs at its best.

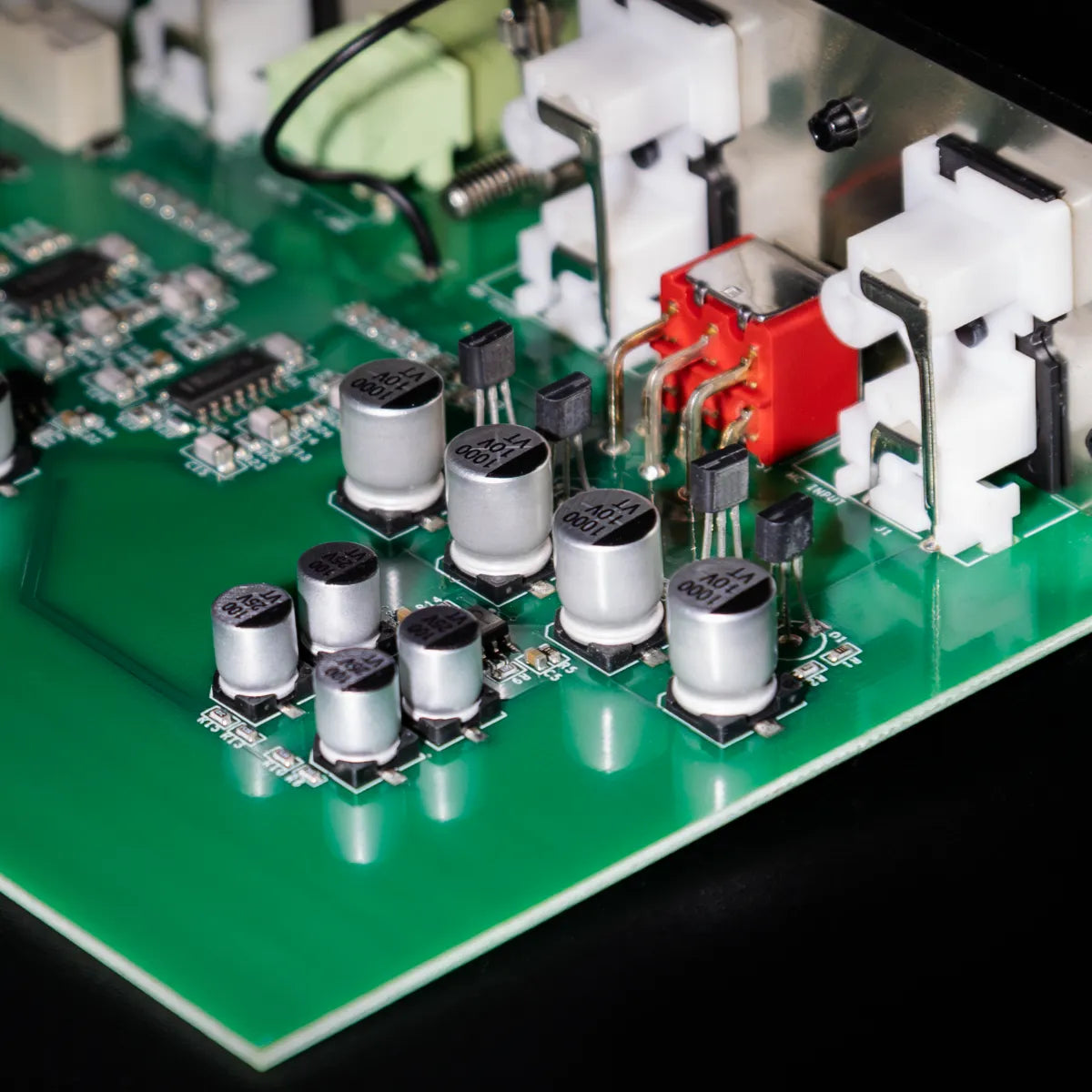

True Moving-Coil Gain Stage
Many budget phono preamps boost gain on Moving Magnet inputs for MC cartridges, adding noise. The SpinStage has a dedicated MC gain stage, delivering true MC performance with minimal background noise.
Highly Refined Circuitry
The SpinStage preamp uses isolated dual-mono circuitry, a DC servo circuit, and a switchable subsonic filter (20 Hz, 12 dB/octave) to minimize noise, distortion, and turntable rumble.

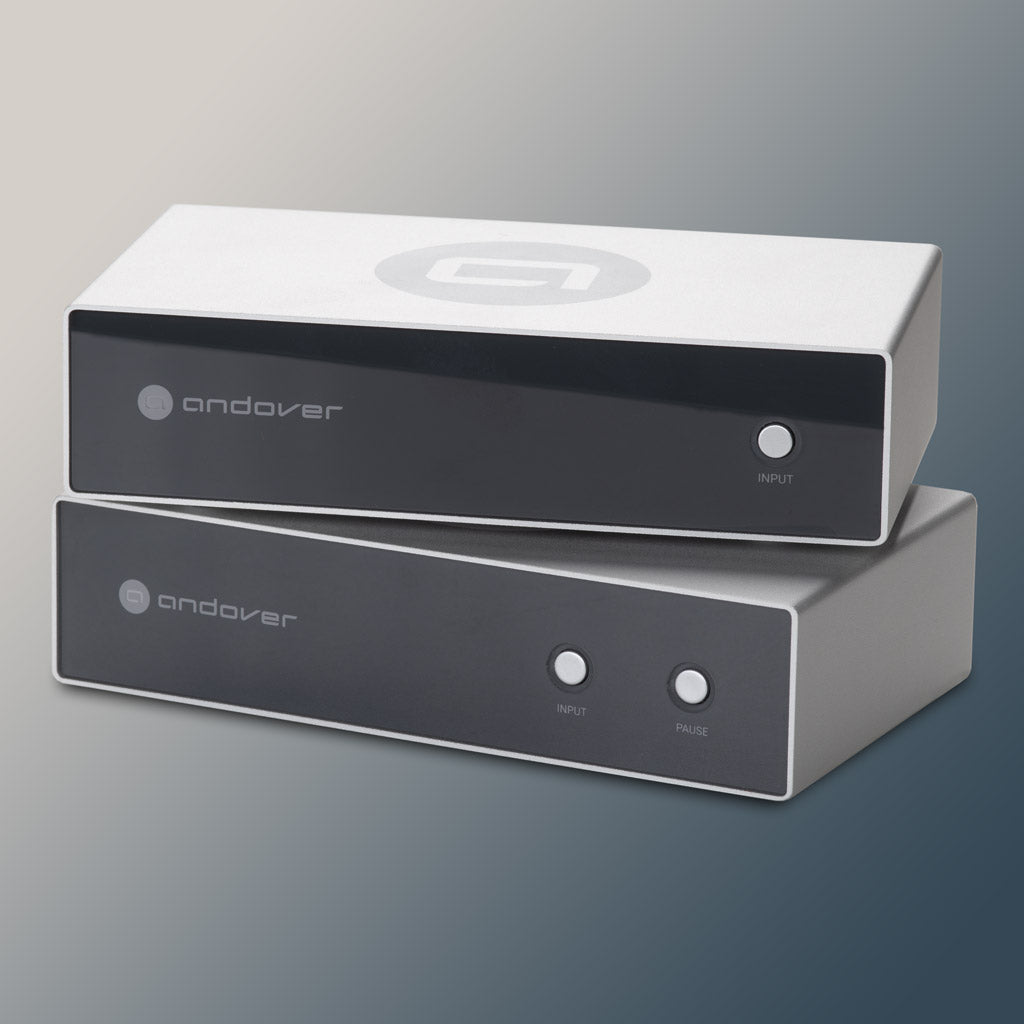

Matched Pair
Spinstage is a match with Songbird HR
Learn More

Product Details

Dimensions: 7.25in Wide x 1.875in High x 4in Deep

System

  • RIAA Equalization Accuracy: +/- 0.1dB typ, 0.2dB Max
  • Overall Frequency Response: 0.5Hz - 50kHz +/- 1dB
  • Signal to Noise Ratio: MM - 78dB Unweighted
  • Signal to Noise Ratio: MC - 76dB Unweighted, (ref. 50 Ohm Source

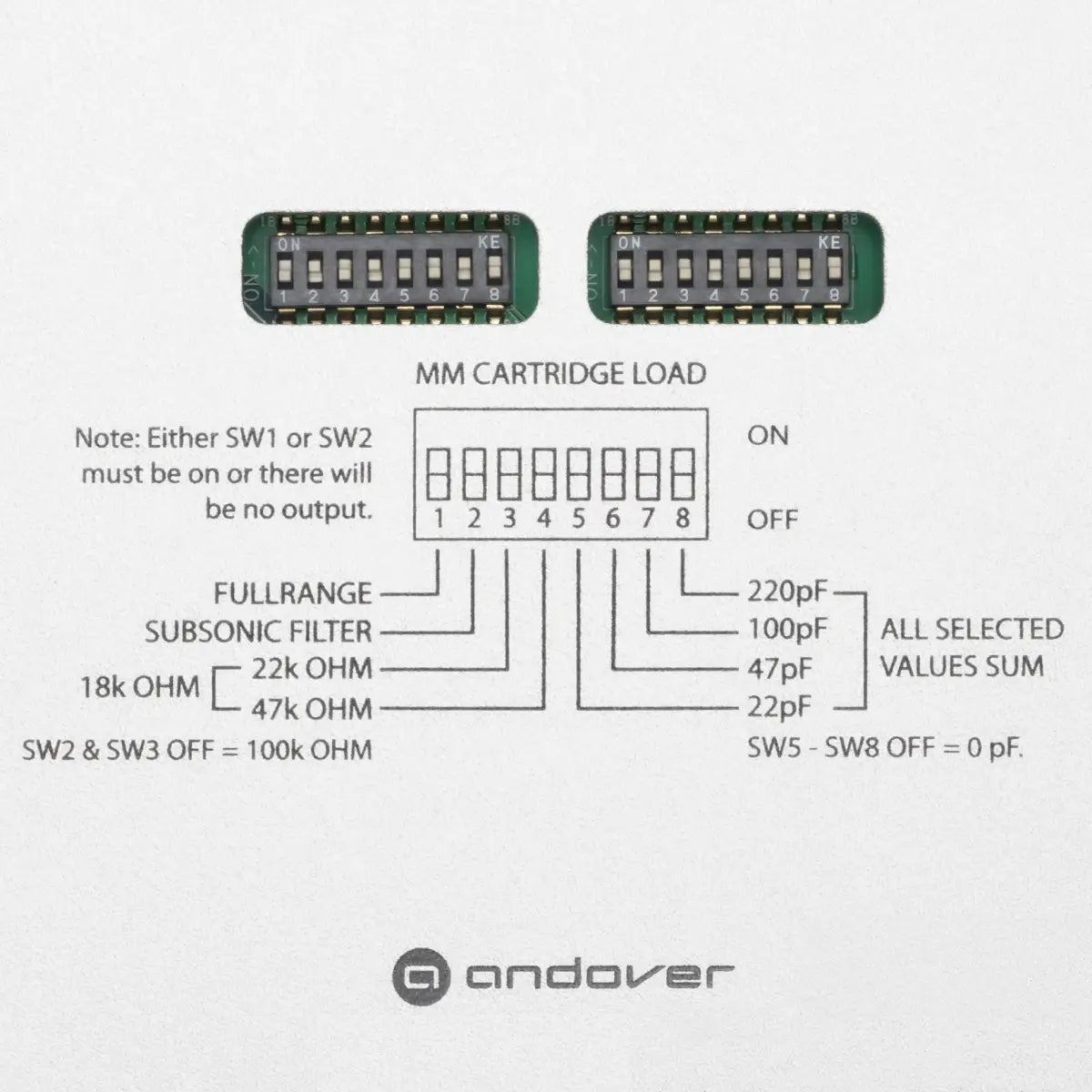

  • Input Impedance - MM: Selectable Resistance: 18kOhm, 22kOhm, 47kOhm, 100kOhm
  • Selectable Capacitance: 0pF, 22pF, 47pF, 69pF, 100pF, 122pF, 147pF, 169pF, 220pF, 242pF, 267pF, 289pF, 320pF, 342pF, 389pF
  • Input Impedance - MC: NA - Current Mode Design
  • Gain MM: 40.5dB
  • Gain MC: 26dB, 10 Ohm Source
  • Subsonic Filter (Defeatable): 20Hz Butterworth Filter 12dB/Octave
  • Output Level (Nominal): 500mV RMS
  • Output Level (MAX): 8V RMS
  • Input Overload - MM: 120mV pk, 1kHz
  • Input Overload - MC: 6mV pk, 1kHz
  • Aux Input: Passthrough

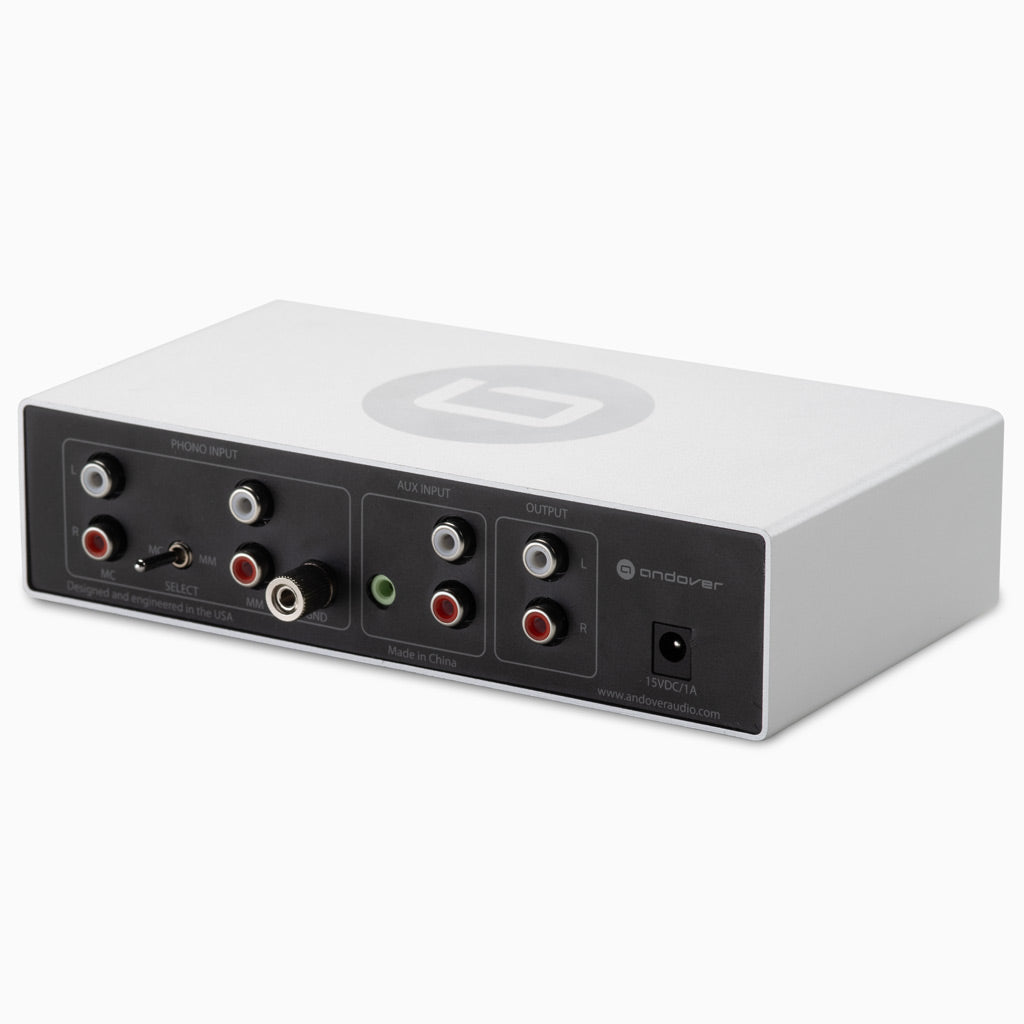

Back Panel

  • Stereo Moving-Coil Input
  • Stereo Moving-Magnet Input
  • Moving-Coil / Moving-Magnet Selector Switch
  • Ground Screw
  • 3.5mm AUX Input
  • Stereo RCA AUX Input
  • Stereo RCA AUX Output
  • 15vDC Power Input

Design/Features

  • Desktop-Friendly Design
  • Bead-Blasted Aluminum Shell

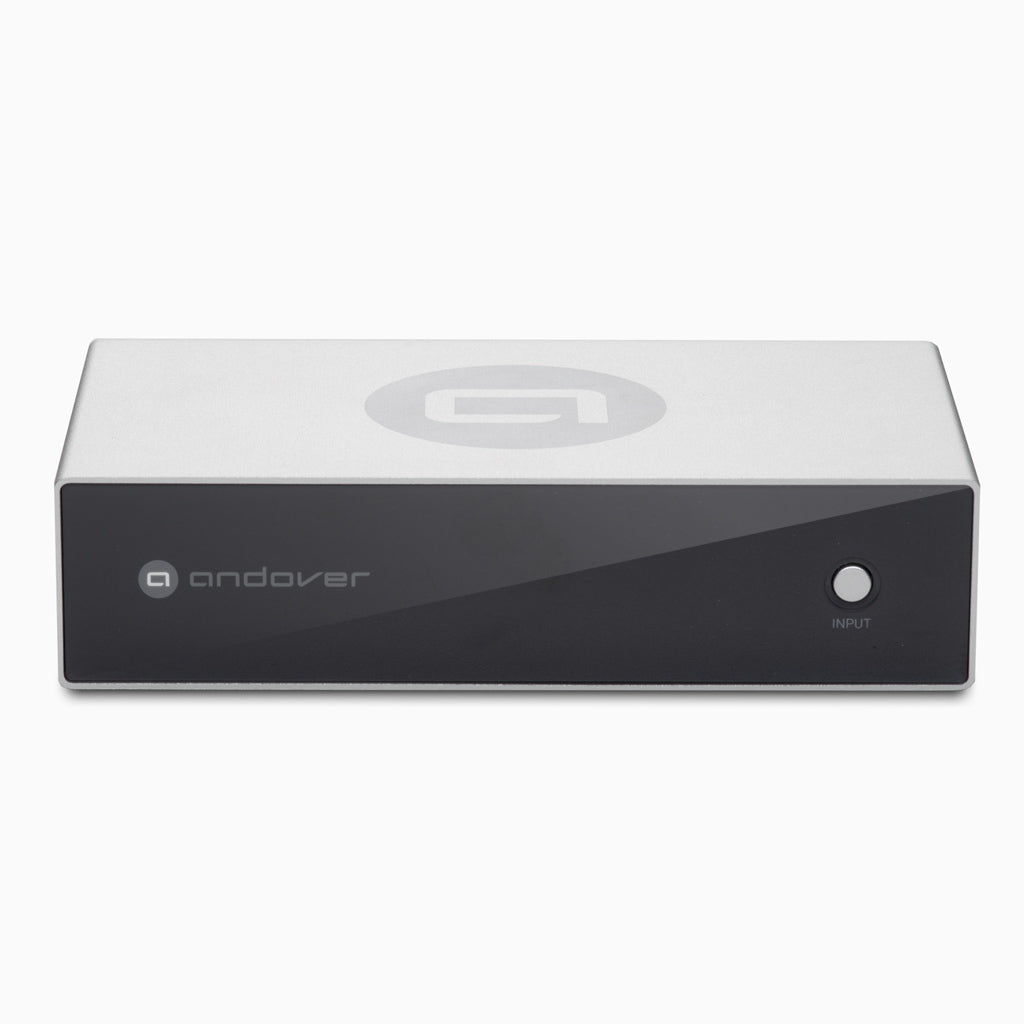

  • Acrylic Front Panel
  • Input Select/Standby Button
  • Selectable Input Resistance & Capacitance to Optimize Cartridge Performance
  • Selectable Subsonic Filter
  • Transconductance Amplifier Optimizes Moving-Coil Interface
  • Isolated Dual-Mono Circuitry
  • DC Servo Circuit Eliminates In-Circuit Series Capacitors
  • Supports Moving-Magnet / Moving-Coil Cartridges
