SpinQuartet System

Complete Audio System


All-in-one vinyl-playing solution powered by SpinBase 2 and SpinSub, combining stunning sound with vinyl album storage in one elegant, space saving setup.

System includes:

  • SpinBase 2 Turntable Speaker
  • SpinDeck 2 Semi-Automatic Turntable
  • SpinStand Record & Component Stand
  • SpinSub Subwoofer
Color
Black
White
  • Semi-automatic tonearm lifts and returns to rest at the end of the record
  • Light-tracking AT3600 magnetic cartridge
  • Cast, machined aluminum platter with damped silicone rubber mat
  • Electronically stabilized DC motor assures unwavering speed
  • Quiet belt-drive isolates motor vibrations from affecting your music
  • Built-in switchable phono preamp
  • Dust cover included
  • Isogroove® Feedback Elimination Technology
  • Stereo two-way vented speaker system
  • Bluetooth receive and transmit
  • Phono, Line (aux), and Optical Digital Inputs
  • Subwoofer or powered speaker output
  • Remote control to adjust volume, eq, and more
  • 4-Character LED Stealth Display
  • 270° sound field
  • Two configurations: 3 or 4 shelves
  • Accommodates up to 150 LPs
  • Metal-reinforced supports
  • Adjustable feet
  • Isogroove® feedback elimination technology
  • Dual 6.5” woofers in vented enclosure
  • Automatic signal sensing (on/off)
  • Adjustable crossover frequency and level
  • 32Hz-180kHz frequency range
  • 100W (peak) class D amplification

Product Details

SpinDeck 2

Dimensions: 16.5in Wide x 4.75in High x 13.4in Deep

Turntable

  • Electronically Governed 33.3/45 RPM Speed
  • <.20% Wow and Flutter Assures Stable Speed
  • >67dB (A-Weighted) Means Low Mechanical Rumble
  • 8.5in Tonearm Length Keeps Tracking Error Low
  • Built-in Phono Preamp (Can be Bypassed When Not Required)
  • Compatible with 100-240VAC. / 50-60Hz. <1.5W

Audio Technica AT3600 Phono Cartridge

  • Wide 20-20,000Hz Frequency Range
  • Channel Separation Exceeds 24dB at 1kHz
  • Output Voltage of 4.2mV at 1kHz, 5cm/sec is Compatible with All MM Phono Inputs (With Built-In Preamp Bypassed)
  • Stylus Type .0006" Conical Bonded Diamond
  • Recommended Tracking Force 2.5-3.5 Grams

Design

  • Available in White or Black
  • Tonearm Lifts and Returns to Rest at End of Record
  • Quiet Belt-Drive to Isolate Motor Vibrations
  • Cast, Machined Aluminum Platter with Damped Silicone Rubber Mat
  • Pre-Installed Light-Tracking Audio Technica Magnetic Cartridge

SpinBase 2

Dimensions: 18in Wide x 3.25in High x13.5in Deep

Audio System

  • Isogroove® Feedback Elimination Technology
  • 70W total Dual Direct Drive Bi-Amplification
  • Stereo Two-Way Vented Speaker System
  • Tweeters: Soft Dome - 20mm (x2)
  • Woofers: Oval - 1.75”x 4” (x2)
  • Frequency Range: 60Hz-20kHz
  • 270° Sound Field
  • Bass + Treble EQ Controls
  • Selectable 100Hz High-Pass Filter

Connections

  • Phono and Line (AUX) Inputs
  • Optical Digital Input
  • USB Flashdrive Playback
  • Bluetooth Receive and Transmit
  • Subwoofer or Powered Speaker Outputs

Design

  • Available in White or Black
  • Heathered Fabric Grille
  • 4-Character LCD Status Display
  • IR Remote
  • MDF Enclosure with Internal Bracing for Rigidity

SpinStand

4 Shelf Dimensions: 18in W x 33.5in H x 13.5in Deep

3 Shelf Dimensions: 18in W x 29.5in H x 13.5in Deep

Design

  • Available in White or Black
  • Two Configurations - 3 or 4 Shelf
  • Accommodated up to 150 LPs
  • Metal Reinforced Supports
  • Adjustable Feet
  • Headphone Hanger

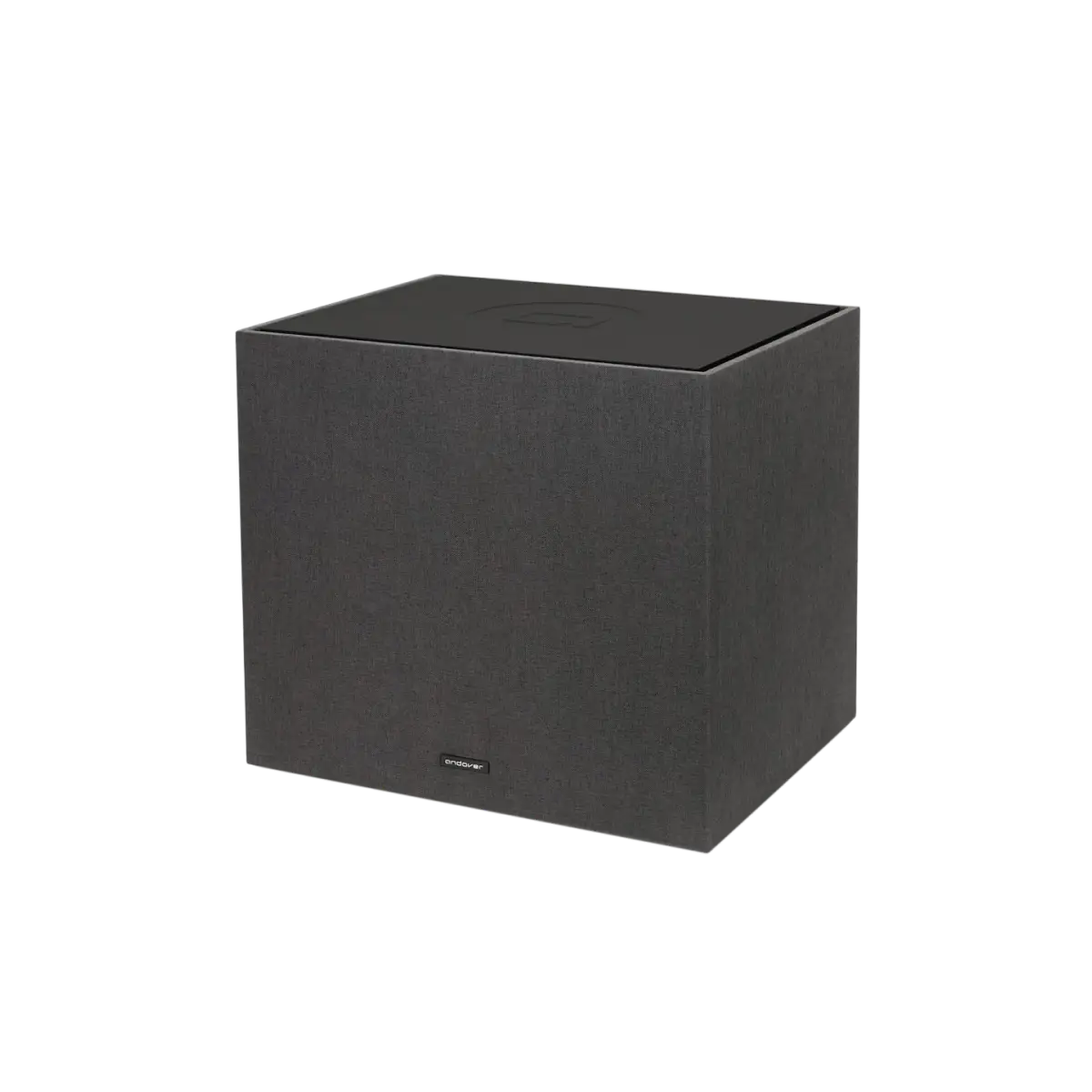

SpinSub

Dimensions: 14.25in W x 12.75in H x 11.25in Deep

System

  • IsoGroove® Feedback Elimination Technology
  • 100W (Peak) Class D Amplification
  • Dual 6.5in Woofers in Vented Enclosure
  • 32-180Hz Frequency Range
  • Adjustable Level Control
  • 50-180Hz Adjustable Low-Pass Filter
  • Automatic Signal Sending On/Off

Connections

  • Single Line Input (Mini Jack to Mini Jack fir SpinBase Connections)
  • Mini Jack to Dual RCA Cable Adaptor for Additional Connectivity

Design

  • Available in White or Black
  • Heathered Fabric Grille
  • MDF Enclosure with Internal Bracing for Rigidity
  • Stand Alone or Fit in SpinStand

Note: Your order will arrive in multiple boxes.

SpinDeck 2

  • SpinDeck 2 Semi-Automatic Turntable
  • Hinged Dustcover
  • Owners Manual
  • Universal Power Adapter
  • 0.5 Meter RCA Signal Cable
  • 45RPM 7in Record Adapter
  • Warranty Card

SpinBase 2

  • SpinBase 2 Turntable Speaker System
  • Owners Manual
  • Power Cable (110v-220v)
  • 0.35m RCA Phono Cable with Ground
  • 1.5m Mini Plug to Dual RCA Plug Aux Cable
  • Remote Control (Batteries Included)
  • Warranty Card

SpinStand

  • SpinStand
  • Assembly Guide
  • Assembly Hardware
  • Optional Headphone Hanger

SpinSub

  • SpinSub
  • Owners Manual
  • 3-Meter Braided 3.5mm Mini Plug to Mini Plug
  • 3.5mm Mini Plug to Stereo RCA Jack Adapter

Is the system easy to setup?

Yes. The SpinBase, SpinSub, and SpinDeck 2 are ready to go out of the box. The SpinStand is easy to assemble.
